EMI Shield Flexible Capacitive Touch Keypad / Custom Printed Membrane Touch Panel

EMI Shield Flexible Capacitive Touch Keypad / Custom Printed Membrane Touch Panel
EMI Shield Flexible Capacitive Touch Keypad / Custom Printed Membrane Touch Panel EMI Shield Flexible Capacitive Touch Keypad / Custom Printed Membrane Touch Panel

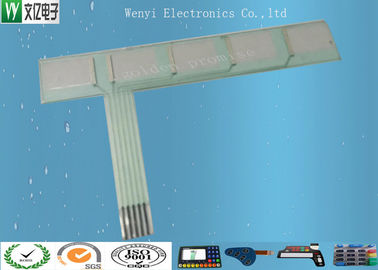

Large Image :  EMI Shield Flexible Capacitive Touch Keypad / Custom Printed Membrane Touch Panel

Product Details:

Place of Origin: Made in China
Brand Name: WenYI
Certification: RoHs, SGS, ISO9001
Model Number: GPI-Flex-C-009

Payment & Shipping Terms:

Minimum Order Quantity: 300 pcs / order
Price: Negotiable
Packaging Details: ploybag, carton
Delivery Time: 8-12 working days
Payment Terms: D/P, L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 1000,000 pcs / Month
Detailed Product Description
Circuit Type: PET Capacity Touch Flexible Circuit Sensitivity: High Response Speed
Working Method: Capacity Touch Application: Touch Sense Keypad
Cable Pitch: 1.0 Mm Selling Point: EMI Shield
High Light:

capacitive touch switch circuit

,

capacitive touch sensor circuit



EMI Shield Flexible Capacitive Touch Keypad / Custom Printed Membrane Touch Panel





Item decription:



Polyster Light touch sense panel EMI shield flexible capacity touch circuit

working type: capacity Sense

Circuit type: Polyester base  ITO

Keys: Multi- Keys

EMI Shield: EMI Shield for Anti- interface

Exit wirelead Pitch: 2.54mm

Application: EMI Shield Capacity touch Sense  Panel





Product Characters



  1. EMI Shield for Anti- interface
  2. color keys screen print are available
  3. Withstand millions of cycles
  4. Perfect exterior
  5. Stable in quality



Our Advantage:

  1. Well advanced production equipment and test devices.
  2. Strong R&D capability
  3. competitive price
  4. Quick delivery
  5. 100% computer test and inspection before shipment
  6. Various design OEM and ODM Service provide for customers



Application

  1. * Home Applicance Electronics devices
  2. * Telecommunications apparatus
  3. * Household appliances
  4. * Various industry control keypad panel
  5. * consumer electronics and 3C items.



Technical specification:





Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch,,various membrane switch in the market.
Engineering capability customer design(OEM), own design(ODM),
Factory capacity 500,000pcs / month
wire lead resistance: <1Ω/CM Life time: >1 Million times
rated current: 25-100mA,0~30V DC Operation Temperature: -40℃~70℃
Rated Voltage: <50V, DC Operation Humidity: at40℃,<98%RH
Insulation resistance: <100MΩ,250V DC Dome springback time: <5 msec
Switch travel: Flat Type 0.05-0.3mm Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm Tail flexiblility: any angle within 180 degree
Print type silkscreen Digital print UV print
Dome type metal dome ploydome embossing keys
Quality control level Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time 9 to 10 working days as standard
Mass Production lead time 12 to 20 working days, as per order volume. Urgent order available
MOQ 20 pcs / lot, might be different as per specification



EMI Shield Flexible Capacitive Touch Keypad / Custom Printed Membrane Touch Panel 0
