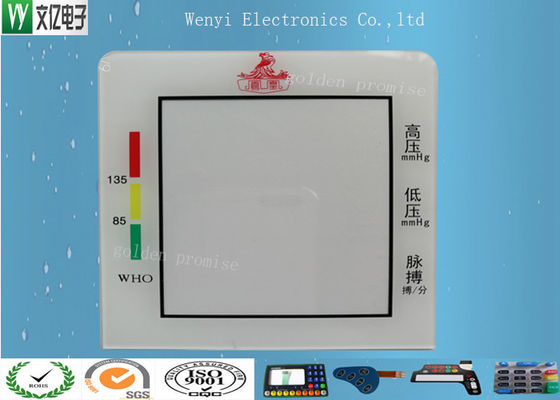

2mm Acrylic Overlay Capacitive Membrane Switch , Tactile Membrane Switch Pad

2mm Acrylic Overlay Capacitive Membrane Switch , Tactile Membrane Switch Pad

  • 2mm Acrylic Overlay Capacitive Membrane Switch , Tactile Membrane Switch Pad
  • 2mm Acrylic Overlay Capacitive Membrane Switch , Tactile Membrane Switch Pad
2mm Acrylic Overlay Capacitive Membrane Switch , Tactile Membrane Switch Pad
Product Details:
Place of Origin: Made in China.
Brand Name: WenYI
Certification: RoHs, SGS, ISO9001
Model Number: GPI-ARY-2-001
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: ploybag, carton
Delivery Time: 5-10 days
Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 100,000 / week
Contact Now
Detailed Product Description
Material Type: Acrylic Or PC, Glass Print: Silkscreen Print
Thickness: 1.5MM , 2MM, 2.5MM Surface: Hi Gloss Or Sand Effect
Application: Capacity Membrane Switch
High Light:

capacitive touch sensor switch

,

capacitive touch membrane



2mm Acrylic Overlay Capacitive Membrane Switch , Tactile Membrane Switch Pad





Item description:  Good exterier silkscreen print 2mm Acrylic overlay for capacity membrane switch



  • Specification: 2.0MM or as per request
  • Material type: PC, Acrylic , Glass
  • exterior: Sanding effect , high gloss, transparent,
  • Color: any color by silkscreen print
  • Lead time for sample: 5-8 working days.
  • Application:  Capacity touch sense keypad panel.
  • Transparent Rate: 95% or as per request.
  • Process: CNC cutting. silk screen print





Product Characters



  1. Custom made OEM/ODM
  2. Rasing, and sanding treatment available
  3. Epoxy keys available
  4. color keys screen print are available
  5. Withstand millions of cycles
  6. Perfect exterior





Our Advantage:

  1. Only focus in membrane switch and related items.
  2. Strong R&D capability
  3. Low cost and competitive price
  4. Quick delivery
  5. 100% computer test and inspection before shipment
  6. One stop purchase available for customer
  7. Whole solution design available
  8. All Products provide one year quality warranty



Application

  1. *Medical Equipment
  2. * Telecommunications apparatus
  3. * Smart phone systems
  4. * Household appliances
  5. * Security systems
  6. * Various industry control keypad panel
  7. * consumer electronics and 3C items.





Technical Specification:



Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , ploy dome,embossing,various membrane switch in the market.
Engineering capability customer design(OEM), own design(ODM),
Factory capacity 500,000pcs / month
wire lead resistance: <1Ω/CM Life time: >1 Million times
rated current: 25-100mA,0~30V DC Operation Temperature: -40℃~70℃
Rated Voltage: <50V, DC Operation Humidity: at40℃,<98%RH
Insulation resistance: <100MΩ,250V DC Dome springback time: <5 msec
Switch travel: Flat Type 0.05-0.3mm Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm Tail flexiblility: any angle within 180 degree
Print type silkscreen Digital print UV print
Dome type metal dome ploydome embossing keys
Embossing type various kinds of embossing available,embossing height max 1.2mm
Quality control level Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time 9 to 10 working days as standard
Mass Production lead time 12 to 20 working days, as per order volume. Urgent order available
MOQ 20 pcs / lot, might be different as per specification

    update date: 2018/11/10
