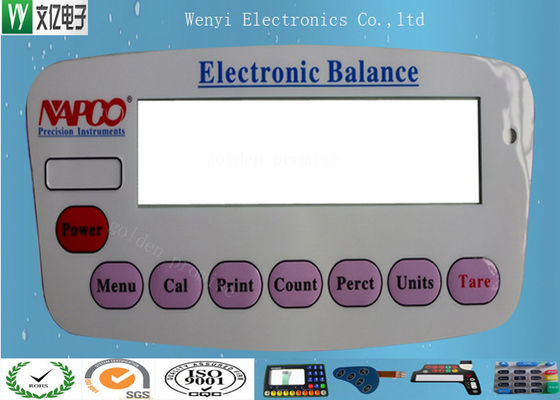

Tactile Dome Embossing Membrane Switch Keypad High Gloss for Electronic Device

    • Tactile Dome Embossing Membrane Switch Keypad High Gloss for Electronic Device
    • Tactile Dome Embossing Membrane Switch Keypad High Gloss for Electronic Device
    • Tactile Dome Embossing Membrane Switch Keypad High Gloss for Electronic Device
  • Tactile Dome Embossing Membrane Switch Keypad High Gloss for Electronic Device

    Product Details:

    Place of Origin: Made in China
    Brand Name: WenYi
    Certification: ISO, RoHs, SGS.
    Model Number: WY-MS-006

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiable
    Packaging Details: ploybag, anti-static ploybag per pc, then put in carton
    Delivery Time: 10-15 working days
    Payment Terms: Western Union, L/C,, T/T, D/P, D/A
    Supply Ability: 500,000 pcs / Month
    Contact Now
    Detailed Product Description
    Overlay Meterial: 0.20 Mm PET Embossing Type: Rim Embossing
    Circuit: 0.1mm PET With Silver Paste Back Adhesive: 3M467 Or Similar
    Overlay Effect: High Gloss Window: Clear Transparent



    Tactile Dome Embossing Membrane Switch Keypad High Gloss for Electronic Device





    Item Description:



    High Gloss 0.20 mm PET Overlay With Clear Transparent Window Embossing Keys Membrane Switch

    Overlay: 0.2 mm High gloss PET overlay

    Membrane switch type:  Tactile Dome

    Dome type: 10 mm Metal dome

    Circuit :  PET 0.1mm  silver past

    Application: Electronic Device Control Keypad

    Sample Lead time :  9-12 working days

    Mass production lead time: standard leadtime 9-14 working days

    MOQ: 10 PCS

    Defected Rate and guarantee: 0.3% as standard





    Product Characters



    1. Custom made OEM/ODM
    2. Rasing, and sanding treatment available
    3. Epoxy keys available
    4. color keys screen print are available
    5. Withstand millions of cycles
    6. Perfect exterior





    Our Advantage:

    1. Only focus in membrane switch and related items.
    2. Strong R&D capability
    3. Low cost and competitive price
    4. Quick delivery
    5. 100% computer test and inspection before shipment
    6. One stop purchase available for customer
    7. Whole solution design available
    8. All Products provide one year quality warranty



    Application

    1. * Medical Equipment
    2. * Telecommunications apparatus
    3. * Smart phone systems
    4. * Household appliances
    5. * Security systems
    6. * Various industry control keypad panel
    7. * consumer electronics and 3C items.



    Technical Specification:



    Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
    Membrane switch Range carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , ploy dome,embossing,various membrane switch in the market.
    Engineering capability customer design(OEM), own design(ODM),
    Factory capacity 500,000pcs / month
    wire lead resistance: <1Ω/CM Life time: >1 Million times
    rated current: 25-100mA,0~30V DC Operation Temperature: -40℃~70℃
    Rated Voltage: <50V, DC Operation Humidity: at40℃,<98%RH
    Insulation resistance: <100MΩ,250V DC Dome springback time: <5 msec
    Switch travel: Flat Type 0.05-0.3mm Base Material voltage withstand: 1500 V DC
    tactile type:0.3-1.5mm Tail flexiblility: any angle within 180 degree
    Print type silkscreen Digital print UV print
    Dome type metal dome ploydome embossing keys
    Embossing type various kinds of embossing available,embossing height max 1.2mm
    Quality control level Defect Rate less than 4 pcs out of 1000pcs
    Quality Guarantee Provide 1 year or 0.5~1 milion operation times, as per standard.
    Sample lead time 9 to 10 working days as standard
    Mass Production lead time 12 to 20 working days, as per order volume. Urgent order available
    MOQ 20 pcs / lot, might be different as per specification
