Keyboard Membrane Switch Multilayer Flexible Circuits , 2 Layers Fpc Flex Circuit Board

Product Details:

Place of Origin:	Made in China
Brand Name:	Wenyi Electronics
Certification:	RoHs. SGS, ISO9001:2008
Model Number:	GPI-FC-008

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs/ lot
Price:	Negotiable
Packaging Details:	each in ploybag , 100 per bundle/ Bag, then in carton box
Delivery Time:	8-12 working days
Payment Terms:	T/T, L/C, D/A, D/P, , Western Union, MoneyGram
Supply Ability:	500,000 pcs / month

Contact Now

All Products

FPC Membrane Switch (29)

Capacitive Membrane Switch (13)

Embossing Membrane Switch (44)

Flat Membrane Switch (16)

Capacitive Touch Circuit (18)

FPC Flexible Printed Circuit (11)

PET Flex Circuit (13)

Heat Seal Connector (5)

Tactile Metal Domes (10)

Polydome Switch (13)

Silicone Rubber Keypad (14)

Membrane Switch Overlay (13)

Detailed Product Description

Print Type:	Silik Screen	Cirucit Base:	0.1mm PET
Special Point:	2- Layers	Paste:	Silver Paste
Thickness:	0.25mm	Insulate:	Green Oil
High Light:	flex pcb stiffener , ultra thin flex pcb

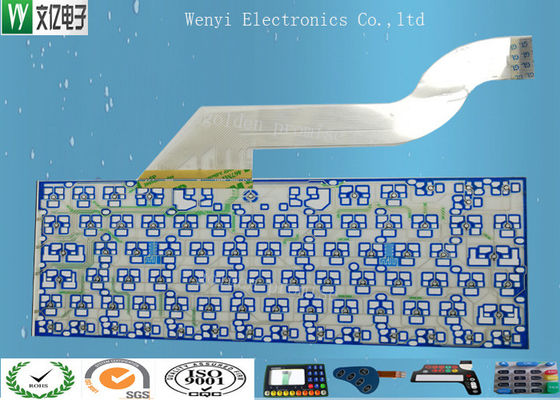

Keyboard Membrane Switch Multilayer Flexible Circuits , 2 Layers Fpc Flex Circuit Board

Item Decription:

Silver Paste Printed Lower Cost Keyboard Use Membrane Switch USE 2 layers PET Flex Circuit

Base : 0.10 mm PET (ployster)

Circuit Print : Silver Paste

Insulate: Green Oil Print

Layer: 2-layers

Contact points: multi-contact points

Our Advantage:

Short leadtime
Automatic Roll to Roll Print for Large Qty Order
100% computer test and inspection before shipment
All Products provide one year quality warranty

Application

* Medical Equipment and Device
* Telecommunications apparatus
* Household appliances
* Security systems
Various Industry Control Panel
Electroninc consumer 3C items

Technical Data:

Electronical charateristic:
⒈ Voltage:	≤50VDC
2.Currency	≤100mA
⒊contact Resistance:	0.5~10Ω
⒋Insulution resistance:	≥100MΩ(100VDC)
⒌ Base Material withstand Voltage :	2kDVC
⒍ Snap back time:	≤6ms
⒎Loop resistance:	50Ω,150Ω,350Ω
⒏Insulate Ink withstand Voltage :	100VDC

Mechnical Data:
⒈ Reliable Life Span:	>1 million operation times

⒉ Closed displacement:	0.1~0.4mm(Notactile type)

	0.4~1.0mm ( tactile type)

⒊ Touch Force:	15~750g

⒋ Silver Paste Resistance Change Rate:	at 55℃,Humidity 90%,56 hours later,resistance between two wire loops :10MΩ/50VDC

5. Exterior for Circuit	No oxidation , no impurity

6.Circuit width and Technical request	Circuit width ≥0.3mm,Distance between two wires 0.3mm,blur of wire <1/3,Line Gap <1/4 circuit width.

⒎Wire lead Pitch:	2.54, 2.50, 1.27, 1.25, 5.08 mm

⒏ wire lead anti-curve rate	test with d=10mm steel Roller with 80times, no breakage

Environment:
⒈Working Temperature:	－20℃～+70℃

	⒉Stock Temperature:－40℃～+85℃ , Humidity within: 95%±5%
