Multi LED Embossing Membrane Switch 10 Pin Female Connector 1.0mm Pitch

Product Details:

Place of Origin:	Made in China
Brand Name:	Wenyi Electronics
Certification:	RoHs, SGS, ISO9001
Model Number:	GPI-FMS-012

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs / lot
Price:	Negotiable
Packaging Details:	ploybag for each, then in carton box
Delivery Time:	12-14 working days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	5,000,000 pcs / Months

Contact Now

All Products

FPC Membrane Switch (29)

Capacitive Membrane Switch (13)

Embossing Membrane Switch (44)

Flat Membrane Switch (16)

Capacitive Touch Circuit (18)

FPC Flexible Printed Circuit (11)

PET Flex Circuit (13)

Heat Seal Connector (5)

Tactile Metal Domes (10)

Polydome Switch (13)

Silicone Rubber Keypad (14)

Membrane Switch Overlay (13)

Detailed Product Description

Circuit Type:	FPC Flexible Cirucit	Keys:	Metal Dome And Embossing
LED:	Multi- SMT Led	Backadhesive:	3M467MP
Connector:	Female Connetor	Overlay:	Fine Sanding Effect
High Light:	waterproof membrane switch , pcb membrane keypad

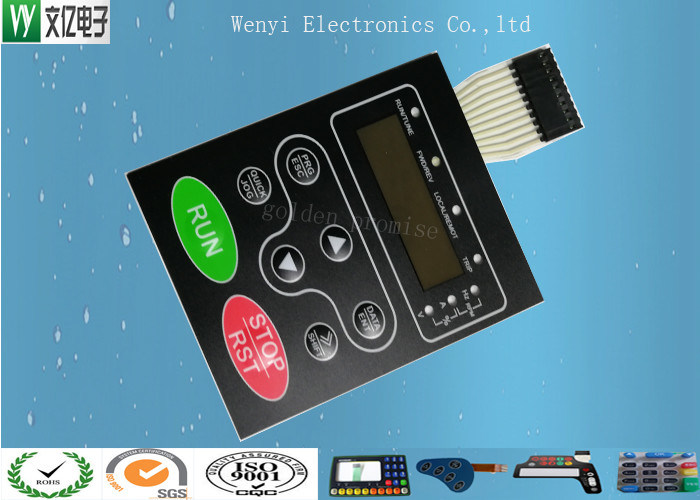

Multi LED Embossing Membrane Switch 10 Pin Female Connector 1.0mm Pitch

Item description:

High speed express train use embossing keys FPC push botton membrane switch

Circuit type: Flexible FPC
Button type: embossing metal dome keys
LED Brand: ever light
LED weld: SMT weld for Leds
Backadhesive: 3M467 MP or equivaient.
Defect rate: less than 0.3%
Connector type: Female, 10 pin, 1.0 pitch, 2.54 pitch and 0.5 pitch also ok
Guarantee: 1 year quality Guarantee for all customers or 1 million opeation life time

Product Characters:

Custom made OEM/ODM
Rasing, and sanding treatment available
Epoxy keys available
color keys screen print are available
Withstand millions of cycles
Perfect exterior2

Our Advantage:

Only focus in membrane switch and related items.
Strong R&D capability
Low cost and competitive price
Quick delivery
100% computer test and inspection before shipment
One stop purchase available for customer
Whole solution design available
All Products provide one year quality warranty

Applications:

* Medical Equipment
* Telecommunications apparatus
* Smart phone systems
* Household appliances
* Security systems
* Various industry control keypad panel
* consumer electronics and 3C item

Technical Specification:

⒈ Voltage:	≤50VDC
2.Currency	≤100mA
⒊contact Resistance:	0.5~10Ω
⒋Insulution resistance:	≥100MΩ(100VDC)
⒌ Base Material withstand Voltage :	2kDVC
⒍ Snap back time:	≤6ms
⒎Loop resistance:	50Ω,150Ω,350Ω
⒏Insulate Ink withstand Voltage :	100VDC

Mechnical Data:
⒈ Reliable Life Span:	>1 million operation times

⒉ Closed displacement:	0.1~0.4mm(Notactile type)

	0.4~1.0mm ( tactile type)

⒊ Touch Force:	15~750g

⒋ Silver Paste Resistance Change Rate:	at 55℃,Humidity 90%,56 hours later,resistance between two wire loops :10MΩ/50VDC

5. Exterior for Circuit	No oxidation , no impurity

6.Circuit width and Technical request	Circuit width ≥0.3mm,Distance between two wires 0.3mm,blur of wire <1/3,Line Gap <1/4 circuit width.

⒎Wire lead Pitch:	2.54, 2.50, 1.27, 1.25, 5.08 mm

⒏ wire lead anti-curve rate	test with d=10mm steel Roller with 80times, no breakage
