Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof

Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof

  • Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof
  • Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof
Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof
Product Details:
Place of Origin: Made in China
Brand Name: Wenyi Electronics
Certification: RoHs, SGS, ISO9001
Model Number: GPI-FMS-033
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs / lot
Price: Negotiable
Packaging Details: ploybag for each, then in carton box
Delivery Time: 10-12 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5,000,000 pcs / Months
Contact Now
Detailed Product Description
Circuit Type: PET Flexible Cirucit Embossing: Embossing
Back Adhesive: 3M 9448 A Life Span: No Less Than 1 Million Operation Times
Overlay: PET 0.175mm Dome Type: Metal Dome
High Light:

metal dome membrane switch

,

pcb membrane keypad



Professional Poly Dome Embossing Membrane Switch Multi Keys IP54 IP67 Waterproof





Item description:

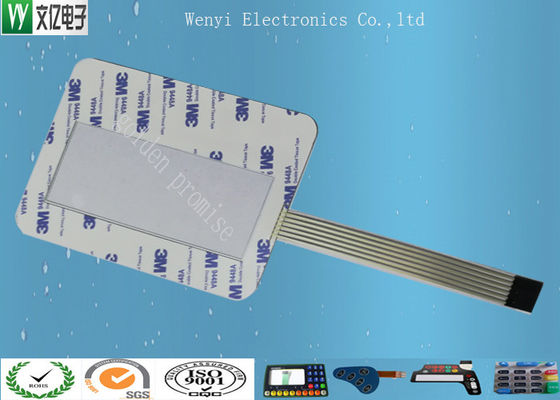

   0.175mm PET Overlay Poly Dome Multi- Keys Embossing Membrane Switch



     Circuit type:  0.1mm Flexible PET Silver Ink

     Special Point: Poly Dome

     Touch force: 300g

     Backadhesive: 3M 300 LSE

     Connetor: ZIF Connector 8Pin

     Defect rate: less than 0.5%

     Guarantee: 1 year quality Guarantee for all customers





Product Characters:



  1. PET 0.175mm Overlay.
  2. PC/PET  :High  Glossy , Glossy
  3. Waterproof Available. IP54,IP67
  4. Color keys screen print or Digital Print are available
  5. Withstand millions of cycles
  6. Perfect exterior, with various treatment
  7. Stable in quality: defect rate less then 5 pcs out of 1000 pcs





Our Advantage:



  1. Strong R&D capability for various industrial use membrane switch
  2. Low cost and competitive price
  3. Short Lead time for samples and Mass production 8-14 working days.
  4. Advanced Equipment and Technolodgy.
  5.  Over 13 years experience in the industry.
  6. Professional manufacturer with experienced employee





Technical Specification:



⒈ Voltage:   ≤50VDC
2.Currency   ≤100mA
⒊contact Resistance:   0.5~10Ω
⒋Insulution resistance:   ≥100MΩ(100VDC)
⒌ Base Material withstand Voltage :   2kDVC
⒍ Snap back time:   ≤6ms
⒎Loop resistance:  50Ω,150Ω,350Ω
⒏Insulate Ink withstand Voltage :  100VDC

Mechnical Data:
⒈ Reliable Life Span:   >1 million operation times

⒉ Closed displacement:  0.1~0.4mm(Notactile type)

    0.4~1.0mm ( tactile type)

⒊ Touch Force:   15~750g

⒋ Silver Paste Resistance Change Rate:    at 55℃,Humidity 90%,56 hours later,resistance between two wire loops :10MΩ/50VDC


6.Circuit width and Technical request   Circuit width ≥0.3mm,Distance between two wires 0.3mm,blur of wire <1/3,Line Gap <1/4 circuit width.

⒎Wire lead Pitch:  0.3,0.5,0.8,1.0, 1.25, 2.0, 2.54, 2.50, 1.27, 1.25, 5.08 mm

⒏ wire lead anti-curve rate  test with d=10mm steel Roller with 80times, no breakage

Environment:
⒈Working Temperature:   -20℃~+70℃

    ⒉Stock Temperature:-40℃~+85℃ , Humidity within: 95%±5%

    ⒊Large air pressure:86~106KPa
