| Place of Origin: | Made in China |
| Brand Name: | WenYi |
| Certification: | ISO, RoHs, SGS. |
| Model Number: | WY-MS-008 |
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | ploybag, anti-static ploybag per pc, then put in carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | Western Union, L/C,, T/T, D/P, D/A |
| Supply Ability: | 500,000 pcs / Month |
| Overlay Meterial: | 0.2mm PET | Embossing Type: | Embossing |
|---|---|---|---|
| Surface Treatment: | Epoxy Keys With High Glossy | Back Adhesive: | 3M9495 Or Similar |
| Connetor: | ZIF Connector Cable | Circuit: | PET 0.125mm Silver Paste |
| Highlight: | waterproof membrane switch,pcb membrane keypad |
||
Item Description:

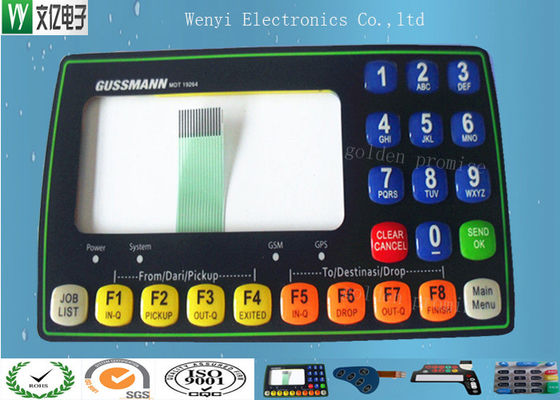

Four Display Window Easy Pull Strip Control Keypad Panel Multi-layer Circuit Embossing Membrane
Switch
Overlay: 0.20 mm PET overlay
Membrane switch type: Tactile Dome
Dome type: 10 mm Metal dome
Circuit : PET 0.125 mm silver past
Special : EPoxy keys with high glossy
Application: Electronic Device
Sample Lead time : 9-12 working days
Mass production lead time: standard leadtime 9-14 working days
MOQ: 10 PCS
Defected Rate and guarantee: 0.3% as standard
Our Advantage:
Application
Technical Specification:
| Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch | |||
| Membrane switch Range | carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , ploy dome,embossing,various membrane switch in the market. | ||
| Engineering capability | customer design(OEM), own design(ODM), | ||
| Factory capacity | 500,000pcs / month | ||
| wire lead resistance: | ＜1Ω/CM | Life time: | >1 Million times |
| rated current: | 25-100mA,0～30V DC | Operation Temperature: | -40℃～70℃ |
| Rated Voltage: | ＜50V, DC | Operation Humidity: | at40℃,＜98%RH |
| Insulation resistance: | ＜100MΩ,250V DC | Dome springback time: | ＜5 msec |
| Switch travel: | Flat Type 0.05-0.3mm | Base Material voltage withstand: | 1500 V DC |
| tactile type:0.3-1.5mm | Tail flexiblility: | any angle within 180 degree | |
| Print type | silkscreen | Digital print | UV print |
| Dome type | metal dome | ploydome | embossing keys |
