SMT Circuit With LED Backlight Illuminated Embossing Key Membrane Switch

Name: SMT Circuit With LED Backlight Illuminated Embossing Key Membrane Switch
Brand: Wenyi Electronics
SKU: GPI-BLED-001
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (133 reviews)

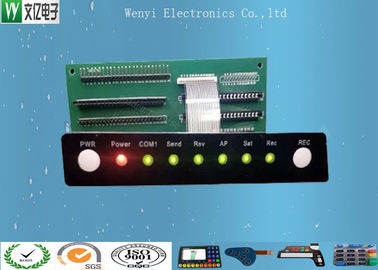

Large Image : SMT Circuit With LED Backlight Illuminated Embossing Key Membrane Switch

Product Details:

Place of Origin:	Made In China
Brand Name:	Wenyi Electronics
Certification:	RoHs,SGS,ISO9001:2008
Model Number:	GPI-BLED-001

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiable
Packaging Details:	each in Polybag,then in carton box as standard packing,
Delivery Time:	8-15 working days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	150,000pcs/ months

Contact Now

Detailed Product Description

LED:	SMT Weld LED	Selling Point:	Backlit Led
Circuit:	FPC Or PET	Life Span:	1 Million Operation Life Time
Dome Type:	Embossing Led Dome And Keys	Print:	Silk Screen Or Digital Print

Item description:　

SMT Circuit With LED Backlight Illuminated Embossing Key Membrane Switch

Backlit type: LGF with side light or common LED back light

Led Type: everlight side light LED 0603 or any brand

LED welding:　　SMT Led

Keys: Embossing or Flat

LED Embossing: Embossing window or no embossing

Circuit : FPC high precision and high stablility.

Quality: more stable than PET circuit with LED

Product Characters

Custom made OEM/ODM
Back light with Side Light LED or Normal LED
LGF Design Available , light distribute more even
Rasing, and sanding treatment available
Epoxy keys available
color keys screen print are available
Withstand millions of cycles
Perfect exterior
Light distibution even

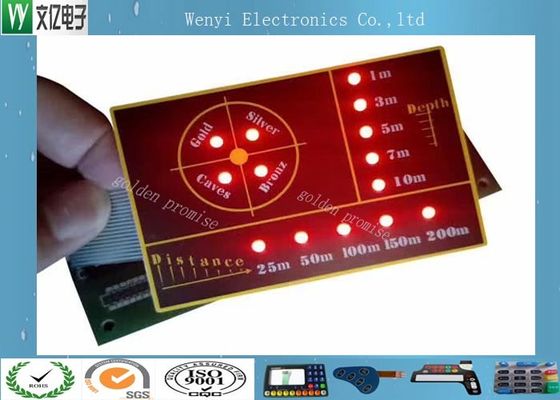

SMT Circuit With LED Backlight Illuminated Embossing Key Membrane Switch 0

　　　Specification:

Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range	carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , ploy dome,embossing,various membrane switch in the market. Silicone Keypads.
Engineering capability	customer design(OEM), own design(ODM),
Factory capacity	500,000pcs / month
wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree
Print type	silkscreen	Digital print	UV print
Dome type	metal dome	ploydome	embossing keys
Embossing type	various kinds of embossing available,embossing height max 1.2mm
Quality control level	Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee	Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time	8 to 12 working days as standard
Mass Production lead time	12 to 20 working days, as per order volume. Urgent order available
MOQ	10 pcs / lot, might be different as per specification

		update date: 2020/2/10
