0.125mm PET Flex Circuit

0.125mm PET Flex Circuit

  • 0.125mm PET Flex Circuit
  • 0.125mm PET Flex Circuit
0.125mm PET Flex Circuit
Product Details:
Place of Origin: Made in China
Brand Name: Wenyi Electronics
Certification: RoHs,SGS,ISO9001:2008
Model Number: GPI-PET- C-010
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs / lot
Price: Negotiable
Packaging Details: 500 pcs / polybag, then in carton box, or as per request
Delivery Time: 8-15 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1,000,000 pcs / month
Contact Now
Detailed Product Description
Material: PET 0.1-0.125mm Print: High Precision Silkscreen Print
Silicone: Silicone Keypad On Circuit Application: Toy Game Player , Computer Keyboard
Special Point: Multi-Contact Points
Highlight:

0.125mm flex circuit board

,

Ink fpc flexible printed circuit

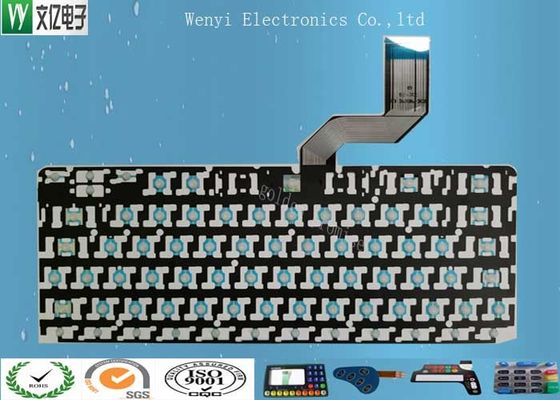

PET Silver Ink Flex Circuit Keyboard with silicone Pad for Computer use and game player keypad Switch





Item description:



PET Silver Ink Flex Circuit Keyboard for Computer use and Toy game player keypad Switch



Thickness: 0.1-0.125mm Polyest

Process: print by automatic Roll to Roll , or semi-Auto print.

Special Points: multi-contact points , high precision , well positioned contact points

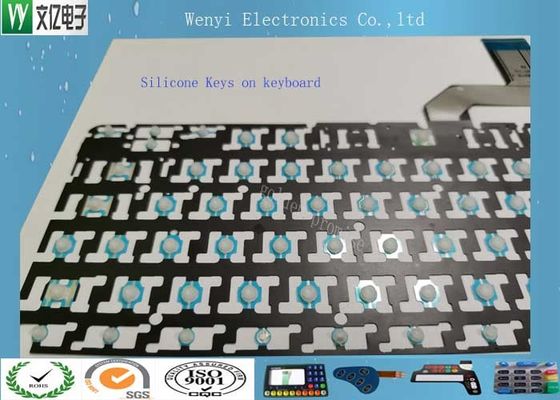

Silicone Rubber  Keypad on Circuit.









Application:

  1. * Toy Game Player or Toy Electronics Device
  2. * Computer keyboard
  3. * Telecommunications apparatus
  4. * Circuit for Security systems Such as bank  use
  5. * Various industry control keypad
  6. * consumer electronics and 3C items.



Technical Specification:



Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch, metal dome , ploy dome,embossing,various membrane switch in the market.
Engineering capability customer design(OEM), own design(ODM),
Factory capacity 800,000pcs / month
wire lead resistance: <1Ω/CM Life time: >1 Million times
rated current: 25-100mA,0~30V DC Operation Temperature: -40℃~70℃
Rated Voltage: <50V, DC Operation Humidity: at40℃,<98%RH
Insulation resistance: <100MΩ,250V DC Dome springback time: <5 msec
Print type silkscreen Digital print UV print
Dome type metal dome ploydome embossing keys
Quality control level Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time 9 to 10 working days as standard
Mass Production lead time 12 to 18 working days, as per order volume. Urgent order available
MOQ 1000 pcs / lot, might be different as per specification

    update date: 2018/11/10
