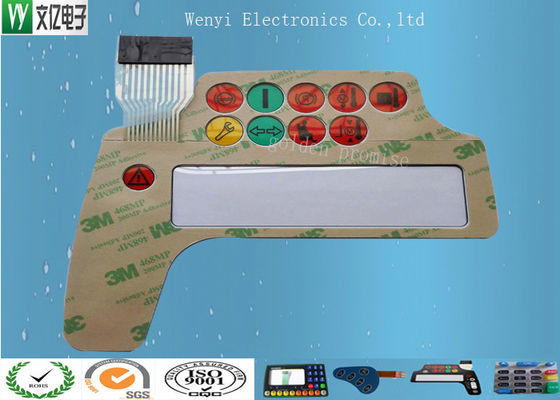

Membrane Switch Keypad Polydome Switch With 0.1mm PET Silver Paste Circuit Custom

Membrane Switch Keypad Polydome Switch With 0.1mm PET Silver Paste Circuit Custom

  • Membrane Switch Keypad Polydome Switch With 0.1mm PET Silver Paste Circuit Custom
  • Membrane Switch Keypad Polydome Switch With 0.1mm PET Silver Paste Circuit Custom
Membrane Switch Keypad Polydome Switch With 0.1mm PET Silver Paste Circuit Custom
Product Details:
Place of Origin: Made in China
Brand Name: WenYi
Certification: ISO, RoHs, SGS.
Model Number: WY-MS-005
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: ploybag, anti-static ploybag per pc, then put in carton
Delivery Time: 10-15 working days
Payment Terms: Western Union, L/C,, T/T, D/P, D/A
Supply Ability: 500,000 pcs / Month
Contact Now
Detailed Product Description
Overlay Meterial: 0.18 Mm PC Embossing Type: Round Pillow Embossing
Circuit: 0.1mm PET With Silver Paste Back Adhesive: 3M467 Or Similar
LED: 6 LED SMT Weld Dome: Ploydome
Waterproof: IP54,IP65
High Light:

membrane switch panel

,

custom membrane switch panel



Membrane Switch Keypad Polydome Switch With 0.1mm PET Silver Paste Circuit Custom





Item Description:



Sand Effect 0.18mm PC Overlay 0.1mm PET Silver Paste Circuit Tactile Embossing Polydome Switch

Overlay: 0.18 mm Sand Effect PC overlay

Membrane switch type:  Tactile Dome

Dome type: Polydome

Circuit :  PET 0.1mm  silver past

Application: Massage Device Use

Sample Lead time :  9-12 working days

Mass production lead time: standard leadtime 9-14 working days

MOQ: 10 PCS

Defected Rate and guarantee: 0.3% as standard





Product Characters



  1. Custom made OEM/ODM
  2. Rasing, and sanding treatment available
  3. Epoxy keys available
  4. color keys screen print are available
  5. Withstand millions of cycles
  6. Perfect exterior



Our Advantage:

  1. Only focus in membrane switch and related items.
  2. Strong R&D capability
  3. Low cost and competitive price
  4. Quick delivery
  5. 100% computer test and inspection before shipment
  6. One stop purchase available for customer
  7. Whole solution design available
  8. All Products provide one year quality warranty





Application

  1. * Medical Equipment
  2. * Telecommunications apparatus
  3. * Smart phone systems
  4. * Household appliances
  5. * Security systems
  6. * Various industry control keypad panel
  7. * consumer electronics and 3C items.



Technical Specification:



Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , ploy dome,embossing,various membrane switch in the market.
Engineering capability customer design(OEM), own design(ODM),
Factory capacity 500,000pcs / month
wire lead resistance: <1Ω/CM Life time: >1 Million times
rated current: 25-100mA,0~30V DC Operation Temperature: -40℃~70℃
Rated Voltage: <50V, DC Operation Humidity: at40℃,<98%RH
Insulation resistance: <100MΩ,250V DC Dome springback time: <5 msec
Switch travel: Flat Type 0.05-0.3mm Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm Tail flexiblility: any angle within 180 degree
Print type silkscreen Digital print UV print
Dome type metal dome ploydome embossing keys
Embossing type various kinds of embossing available,embossing height max 1.2mm
Quality control level Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time 9 to 10 working days as standard
Mass Production lead time 12 to 20 working days, as per order volume. Urgent order available
MOQ 20 pcs / lot, might be different as per specification
