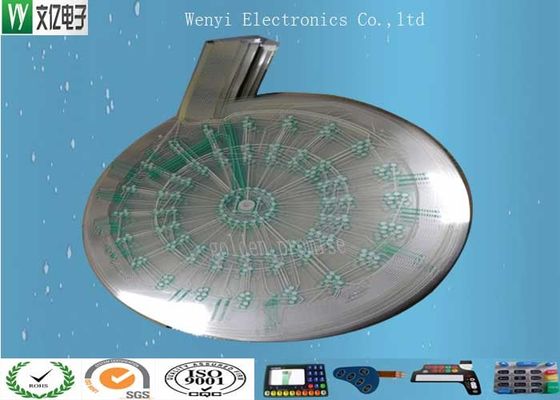

Round Green Insulate PET Flex Circuit 0.125 Mm Silver Paste Print For Sports Electronic Dart

Product Details:

Place of Origin:	Made in China
Brand Name:	Wenyi Electronics
Certification:	RoHs,SGS,ISO9001:2008
Model Number:	GPI-PET- C-006

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs / lot
Price:	Negotiable
Packaging Details:	300 pcs / polybag, then in carton box, or as per request
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	1,000,000 pcs / month

Contact Now

All Products

FPC Membrane Switch (29)

Capacitive Membrane Switch (13)

Embossing Membrane Switch (44)

Flat Membrane Switch (16)

Capacitive Touch Circuit (18)

FPC Flexible Printed Circuit (11)

PET Flex Circuit (13)

Heat Seal Connector (5)

Tactile Metal Domes (10)

Polydome Switch (13)

Silicone Rubber Keypad (14)

Membrane Switch Overlay (13)

Detailed Product Description

Material:	PET 0.1-0.125mm	Print:	High Precision Silkscreen Print
Layer:	2 Layers Or Single Layer	Application:	Sport Electronic Dart
Special Point:	Multi-Contact Points Green Oil	Life Span:	Over 2 Million Operation Times
High Light:	ultra thin flex pcb , flex printed circuit

Round Green Insulate PET Flex Circuit 0.125 Mm Silver Paste Print For Sports Electronic Dart

Item description:

Sports Electronic Dart Use 0.125 mm Silver Paste Print PET Flex Circuit With Green Insulate

Thickness: 0.1-0.125mm Polyest

Process: Silk Screen Print

Special Points: multi-contact points Green Oil , high precision , well positioned contact points

Application:

* Toy Game Player or Toy Electronics Device
* Telecommunications apparatus
* Household appliances
* Security systems
* Various industry control Panel and device

Technical Specification:

Technical Specification Of Membrane Switch and Circuit
Membrane switch Range	carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , ploy dome,embossing,various membrane switch in the market.
Engineering capability	customer design(OEM), own design(ODM),
Factory capacity	500,000pcs / month
wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Print type	silkscreen	Digital print	UV print
Dome type	metal dome	ploydome	embossing keys
Quality control level	Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee	Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time	9 to 10 working days as standard
Mass Production lead time	12 to 20 working days, as per order volume. Urgent order available
MOQ	20 pcs / lot, might be different as per specification

		update date: 2018/11/10
