Rigid FPC Circuit Pcb Membrane Keyboard With V150 Fine Texture Overlay

Rigid FPC Circuit Pcb Membrane Keyboard With V150 Fine Texture Overlay

  • Rigid FPC Circuit Pcb Membrane Keyboard With V150 Fine Texture Overlay
  • Rigid FPC Circuit Pcb Membrane Keyboard With V150 Fine Texture Overlay
Rigid FPC Circuit Pcb Membrane Keyboard With V150 Fine Texture Overlay
Product Details:
Place of Origin: Made in China
Brand Name: Wenyi Electronics
Certification: RoHs, SGS, ISO9001
Model Number: GPI-FMS-018
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs / lot
Price: Negotiable
Packaging Details: ploybag for each, then in carton box
Delivery Time: 10-14 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5,000,000 pcs / Months
Contact Now
Detailed Product Description
Circuit Type: FPC And Rigid PCB Cirucit Overlay: V150
Backadhesive: 3M Serious Connector: Gold Finger
Embossing: Round Embossing Waterproof: IP54,IP67,IP65
High Light:

Rigid FPC membrane keyboard pcb

,

V150 pcb membrane keyboard

,

FPC pcb membrane keyboard



Item description:

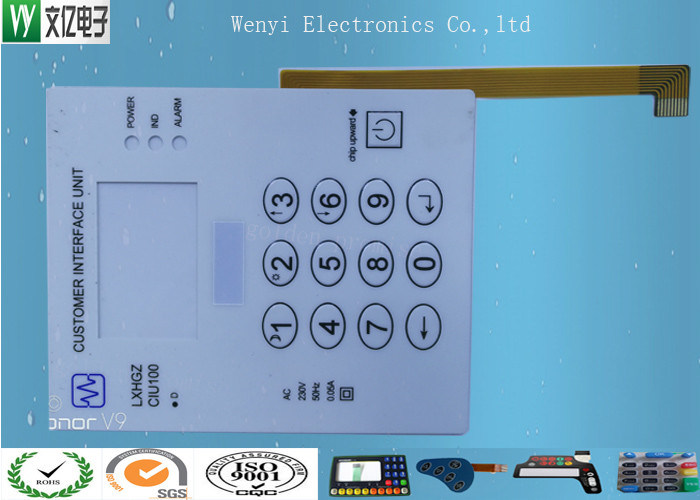

Rigid PCB And FPC Circuit Membrane Switch With V150 Fine Texture Overlay



  • Overlay: V150 Fine Texture
  • Circuit type: Flexible FPC Combine with Rigid PCB
  • Button type: embossing metal dome keys
  • Tactile: perfect tactile feeling
  • Touch force: 100g -250g or as per request
  • Waterproof: IP67 IP54, IP65 Standard
  • Backadhesive: 3M Series.
  • Gold Finger Connector
  • Defect rate: less than 0.3%
  • Guarantee: 1 year quality Guarantee for all customers or 1 million opeation life time





Product Characters:



  1. Custom made OEM/ODM
  2. V150 overlay
  3. Color keys screen print are available
  4. Withstand millions of cycles
  5. Perfect exterior
  6. Good touch feeling, tactile type
  7. Security protection



Our Advantage:



  1. We Focus in membrane switch and related items.
  2. Strong R&D capability
  3. Stable in quality
  4. Low cost and competitive price
  5. Short Lead time for samples and Mass production
  6. Whole solution design available​
  7. Overy 14 years in the industry





Applications:



  1. * home appliances and device
  2. * Security Protection systems with Cipher  Code
  3. * Various industry control keypad panel
  4. * consumer electronics and 3C item
  5. * Thrapy medical system and device



Technical Specification:



Electronical charateristic:
⒈ Voltage:   ≤50VDC
2.Currency   ≤100mA
⒊contact Resistance:   0.5~10Ω
⒋Insulution resistance:   ≥100MΩ(100VDC)
⒌ Base Material withstand Voltage :   2kDVC
⒍ Snap back time:   ≤6ms
⒏Insulate Ink withstand Voltage :  100VDC

Mechnical Data:
⒈ Reliable Life Span:   >1 million operation times

⒉ Closed displacement:  0.1~0.4mm(Notactile type)

    0.4~1.0mm ( tactile type)

⒊ Touch Force:   15~350g

⒋ Silver Paste Resistance Change Rate:    at 55℃,Humidity 90%,56 hours later,resistance between two wire loops :10MΩ/50VDC

5. Exterior for Circuit  No oxidation , no impurity

6.Circuit width and Technical request   Circuit width ≥0.3mm,Distance between two wires 0.3mm,blur of wire <1/3,Line Gap <1/4 circuit width.

⒎Wire lead Pitch:    2.54, 2.50, 1.27, 1.25mm


Environment:
⒈Working Temperature:   -20℃~+70℃

    ⒉Stock Temperature:-40℃~+85℃ , Humidity within: 95%±5%

    ⒊Large air pressure:86~106KPa
