Round Dimpled 8mm Tactile Metal Domes Light Guide Film Stable In Touch Force

Round Dimpled 8mm Tactile Metal Domes Light Guide Film Stable In Touch Force

  • Round Dimpled 8mm Tactile Metal Domes Light Guide Film Stable In Touch Force
  • Round Dimpled 8mm Tactile Metal Domes Light Guide Film Stable In Touch Force
  • Round Dimpled 8mm Tactile Metal Domes Light Guide Film Stable In Touch Force
Round Dimpled 8mm Tactile Metal Domes Light Guide Film Stable In Touch Force
Product Details:
Place of Origin: Made in China
Brand Name: WenYI Electronics
Certification: RoHs, SGS, ISO9001
Model Number: GPI-SSMT-010
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs / lot
Price: Negotiable
Packaging Details: ploybag, then carton box
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 5000000/ week
Contact Now
Detailed Product Description
Dome Type: Round Metal Dome , Touch Force: 100g ~280g
Material: Stainlessness Steel SUS301 Life Time: 1 Million Operation Life Time
Dimple: 5 Dimple Dome Size: 10mm
High Light:

metal dome array

,

metal dome sheet



Round Dimpled 8mm Tactile Metal Domes Light Guide Film Stable In Touch Force





Item description:

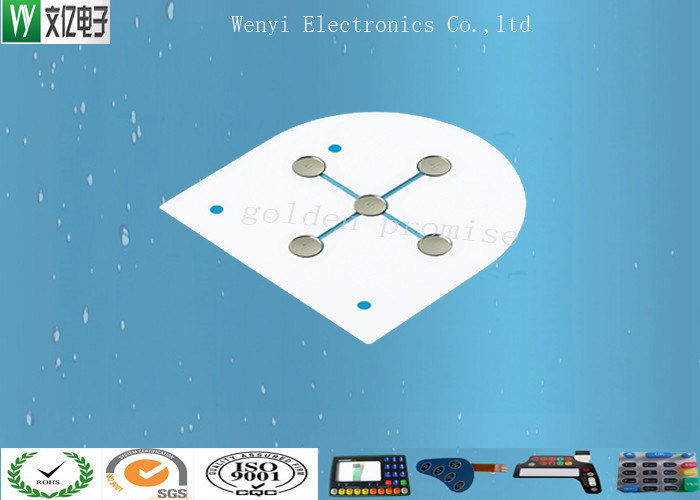

Round Dimpled 8mm SUS301 Stainlessness steel Tactile Metal domes sheet

Dome Size:10  mm

LGF: Light Guide Film

Dome type: Round Metal dome with 5 dimple

Circuit Type: PET (polyster) 0.1mm

Print :  Silk screen





Product Characters

  1. Light Guide Film assembly available
  2. Range from 5mm to 12mm metal dome
  3. Withstand millions of cycles
  4. Perfect exterior
  5. Stable in touch force
  6. Automatic machine for Large volume orders.



Our Advantage:

  1. Automatic production to save cost.
  2. Strong R&D capability
  3. Quick delivery
  4. Stable in quality
  5. Whole solution design available



Application

  1. * Romote Controller and PCB assembly
  2. * Telecommunications apparatus
  3. * Household appliances name plate and PCB assembly.
  4. * Various industry control keypad panel
  5. * consumer electronics and 3C items.



Technial specification:





Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range   digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , Metal name plates.
Engineering capability customer design(OEM), own design(ODM),
Factory capacity 500,000pcs / month
wire lead resistance: <1Ω/CM Life time: >1 Million times
rated current: 25-100mA,0~30V DC Operation Temperature: -40℃~70℃
Rated Voltage: <50V, DC Operation Humidity: at40℃,<98%RH
Insulation resistance: <100MΩ,250V DC Dome springback time: <5 msec
Switch travel: Flat Type 0.05-0.3mm Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm Tail flexiblility: any angle within 180 degree
Quality control level Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time 9 to 10 working days as standard
Mass Production lead time 12 to 20 working days, as per order volume. Urgent order available
MOQ 20 pcs / lot, might be different as per specification

    update date: 2018/11/1
