0.125mm PET Based Capacitive Touch Circuit High Sensitivity And Density

Product Details:

Place of Origin:	Made in China
Brand Name:	Wenyi Electronics
Certification:	RoHs, SGS, ISO9001
Model Number:	GPI-FMS-046

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs / lot
Price:	Negotiable
Packaging Details:	ploybag for each, then in carton box
Delivery Time:	10-12 working days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	5,000,000 pcs / Months

Contact Now

All Products

FPC Membrane Switch (29)

Capacitive Membrane Switch (13)

Embossing Membrane Switch (44)

Flat Membrane Switch (16)

Capacitive Touch Circuit (18)

FPC Flexible Printed Circuit (11)

PET Flex Circuit (13)

Heat Seal Connector (5)

Tactile Metal Domes (10)

Polydome Switch (13)

Silicone Rubber Keypad (14)

Membrane Switch Overlay (13)

Detailed Product Description

Circuit Type:	PET Flexible Cirucit	Embossing:	Embossing Polydome
Life Span:	No Less Than 1 Million Operation Times	Overlay:	PC 0.175mm
Type:	Capacity Touch Circuit	Connector:	ZIF
High Light:	capacitive touch button circuit , capacitive touch switch circuit

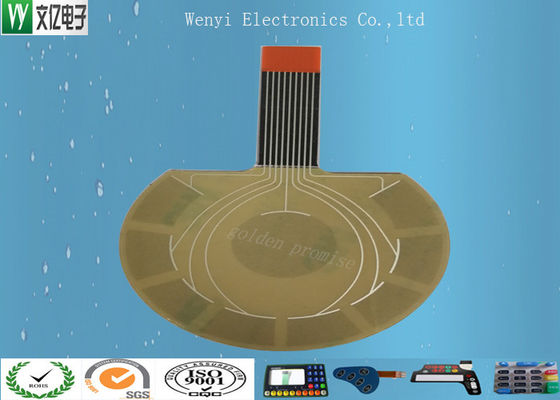

0.125mm PET based High Sensitivity and Density Capacitive Touch Circuit

Item description:

Circuit type: 0.1mm Flexible PET Silver Ink

Special Point: High Density and Sensitivity capacity type

Touch force: 300g

Backadhesive: 3M Series or any brand as per request.

Connetor: 2.54mm ZIF Connector 8Pin

Defect rate: less than 0.5%

Guarantee: 1 year quality Guarantee for all customers

Product Characters:

PET 0.175mm Overlay.
Circuit type : High Sensitivity and Density Capacity Cirucuit
Waterproof Available. IP54,IP67
Color keys screen print or Digital Print are available
Withstand millions of cycles
Emobssing keys
Perfect exterior, with various treatment
Stable in quality: defect rate less then 5 pcs out of 1000 pcs

Our Advantage:

Strong R&D capability for various industrial use membrane switch
Low cost and competitive price
Short Lead time for samples and Mass production 8-14 working days.
Advanced Equipment and Technolodgy.
Over 13 years experience in the industry.
Professional manufacturer with experienced employee

Technical Specification:

Mechnical Data:
⒈ Reliable Life Span:	>1 million operation times

⒉ Closed displacement:	0.1~0.4mm(Notactile type)

	0.4~1.0mm ( tactile type)

⒊ Touch Force:	15~750g

⒋ Silver Paste Resistance Change Rate:	at 55℃,Humidity 90%,56 hours later,resistance between two wire loops :10MΩ/50VDC

5. Exterior for Circuit	No oxidation , no impurity

6.Circuit width and Technical request	Circuit width ≥0.3mm,Distance between two wires 0.3mm,blur of wire <1/3,Line Gap <1/4 circuit width.

⒎Wire lead Pitch:	0.3,0.5,0.8,1.0, 1.25, 2.0, 2.54, 2.50, 1.27, 1.25, 5.08 mm

Keyp Content	None tactile	Tactile
Contact Rating:	30 DVC maximum,100mA maximum, 1 watt maximum	30 DVC maximum,100mA maximum, 1 watt maximum
Operating Contact Resistance	Less than 100 OHMS typical	Less than 100 OHMS typical
Life Cycles	>2,000,000	>1,000,000
Storage Tem	-40°C to 65°C	-40°C to 65°C
